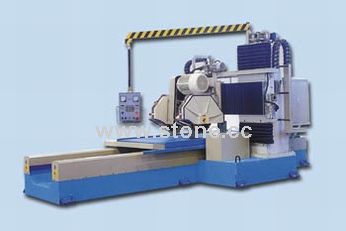

Automatic Profile-modeling Lineation Cutting Machine (NS-107)

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1283307

• Place of Origin:

  China
• Structure and Features:
  Advanced PLC automatic-control profile-modeling system, frequency conversion technology, oil-immersion type sealed guide rail, fully automatic control, computer automatic tracking, and double-blade cutting are adopted for this machine.It is particularly applicable for processing straight line and curled line of marble and granite materials, as well as cutting special-shaped stone plates such as Roman column and big arc plate.

  Technical data:
  Name Unit NS-107
  Blade Diameter:  mm   600
  Max Work Piece (Lx W):   mm   2500X1200X600
  General Power:   kw   13.59
  Water Consumption:   L/min   50
  Dimensions (L譝譎)   mm   5000?200?400
  Weight   kg   4500
