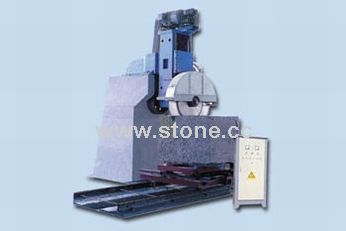

High Efficiency Multi-blade Stone Cutting Machine (NS-104)

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1283203

• Place of Origin:

  China
• Structure and Features:
  Suspension-type structure is adopted for High Efficiency Multi-blade Stone Cutting Machine. The rotating
  feeding
  and retrieving of the machines blades as well as the bldily horizontal movement of the trolley are centrally controlled from an electric control unit. All the item of the technial data are all suitable for marble and granite. We will design with the hardess of stone.

  Technical data:
  Name    Unit        NS-104A       NS-104B  NS-104C
  Blade Diameter:    mm   D1600/D940  D1600/D940       D2200   D2500
  Number of Blades:  pc  6(3-D1600-3-D940) 10(5-D1600,5-D940)  1    1
  Blade Vertical Stroke:  mm   1000  1000   1000  1300
  Size of Work piece:  mm  3500?300?50  3500?300?50  3500?300?50  3500?300?250
  Power of Main drive:  kW  37  45  30  30
  Water Consumption    L/min  375  425  350  350
  General Power           kw  40.7  48.7  33.7  33.7
  Dimensions (L譝譎)   mm   8500?000?500    8500?000?500   8500?000?500   8500?000?800
  Weight                kg     H6300   H6500   H6500   H6500
